Our Products Page
Corus Cables has a range of wires and cables to suit every electrical connection requirement and rating. We supply residential wires for interior electrical wiring in homes and apartments, as well as wires and cables for commercial and industrial buildings. Whatever the need, we can fulfill it.
Product Range
- MULTISTRAND WIRE

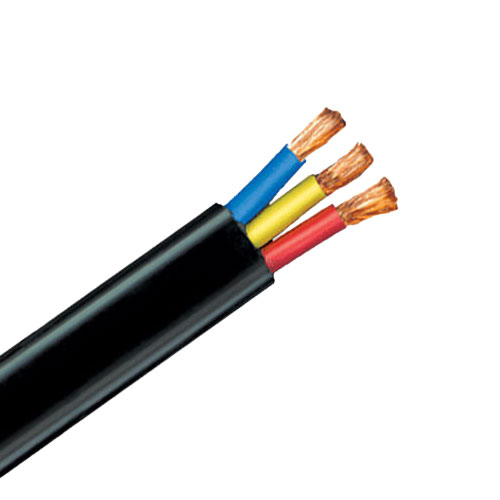

- SUBMERSIBLE 3 CORE FLAT CABLES
- V.I.R. Cables

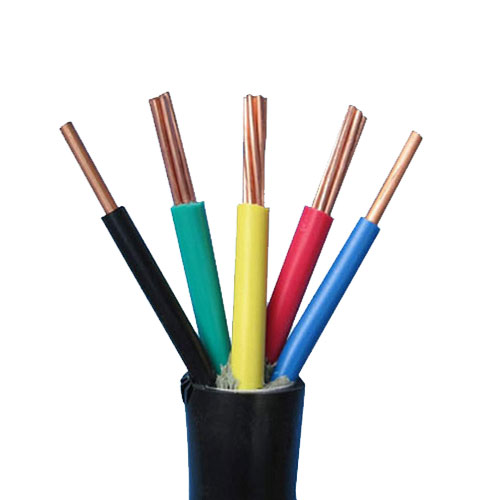

- MULTICORE ROUND FLEXIBLE CABLES
- FLEXIBLE WIRE
- COMPUTER AND NETWORKING CABLES
- CO-AXIAL CABLES
- TELEPHONE AND SWITCHBOARD CABLES
- C.C.T.V. AND SPEAKER CABLES
- ALUMINIUM SINGLE CORE PVC INSULATED UNSHEATHED CABLES

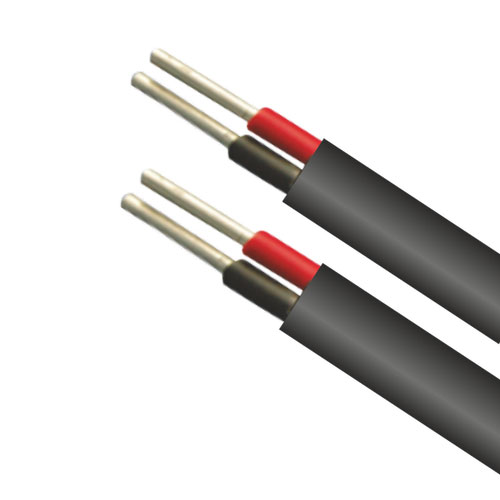

- ALUMINIUM FLAT TWIN AND MULTICORE UNARMORED CABLES

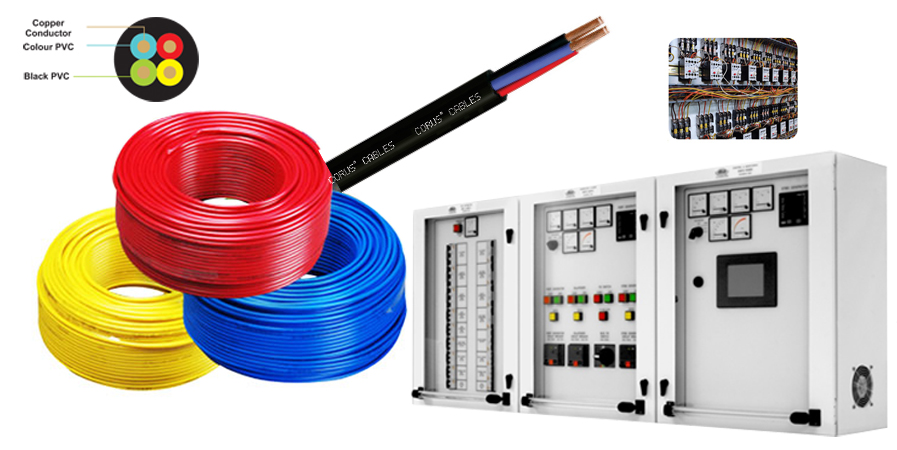

Corus multicore cables are very versatile and can be used in control panels for heavy industries, heavy machineries, air condition, motors etc.
- Size : 0.5 Sq.mm to 25 Sq.mm
- Cores : Upto 4 cores
- Specifications : IS-694, IS-8130, IS-5831
- Conductor : Bright annealed bare copper conductor
- Insulation : Special grade PVC
- Sheath : Tough outer PVC sheath
- Colours : Black or any other colour on specific request
- Packing : 100mtrs polywraped and higher lengths on special order
Client Enquiry
MULTICORE ROUND CABLE, 1100 VOLTS GRADE CONFORMING TO IS : 694-1990
|
Area |
No/Size of wire |
Max Resis.. 0 at 20°C Ohm/km |
Current carrying capacity |
Insulation thikness (nom) |
Single Core sheated |
2 Core (Red, Black) |
3 Core (Red , Black, Green) |
4 Core (Red, Black, Blue & Green)
|
||||
| Sq. mm | mm | Amp. | mm | Sheath Thickness (nom) mm | Overall Diameter (Approx) mm | Sheath Thickness (nom) mm | D.D. (Approx) mm | Sheath Thickness (nom) mm | Overall Diameter (Approx) mm | Sheath Thickness (nom) mm | Overall Diameter (Approx) mm | |
| 0.5 | 16/0.20 | 39.0 | 4 | 0.60 | 0.90 | 4.1 | 1.0 | 6.8 | 1.0 | 7.10 | 1.0 | 7.55 |
| 0.75 | 24/0.20 | 26.0 | 7 | 0.60 | 0.90 | 4.3 | 1.0 | 7.0 | 1.0 | 7.6 | 1.0 | 8.0 |
| 1.0 | 32/0.20 | 19.5 | 12 | 0.60 | 0.90 | 4.5 | 1.0 | 7.65 | 1.0 | 7.9 | 1.0 | 8.55 |
| 1.5 | 48/0.20 | 13.3 | 15 | 0.60 | 0.90 | 4.7 | 1.0 | 8.0 | 1.0 | 8.5 | 1.0 | 9.55 |
| 2.5 | 80/0.20 | 7.98 | 20 | 0.70 | 1.0 | 5.8 | 1.1 | 9.5 | 1.1 | 10.25 | 1.1 | 11.0 |
| 4.0 | 56/0.30 | 4.95 | 28 | 0.80 | 1.0 | 6.4 | 1.1 | 11.05 | 1.1 | 11.75 | 1.1 | 13.1 |
Other Products Range
We can even design and manufacture special purpose wires and cables.
